Boiler testing is a critical aspect of maintaining safety and efficiency in steam-powered systems, especially for those involved in model engineering, miniature steam locomotives, traction engines and more. The Boiler Test Code 2018 (BTC 2018) provides a structured and detailed guideline for the testing, inspection, and certification of boilers, ensuring that they meet the necessary safety standards.

What is The Boiler Test Code 2018?

The Boiler Test Code 2018 is a framework designed for the testing of miniature steam boilers used in the UK. It was created by a collaboration with various model engineering and steam boiler associations to update and refine the processes for boiler safety. It ensures that boilers are tested systematically and consistently, keeping the hobbyist community, professionals and spectators safe.

The code specifically applies to boilers with a barrel diameter of up to 10 inches, typically found in model engineering.

Types of Tests Required

The Boiler Test Code 2018 outlines two main categories of tests:

Hydraulic Test:

This test ensures the structural integrity of the boiler under pressure. It involves filling the boiler with water and raising the pressure to 1.5 times the working pressure to detect leaks or weaknesses in the boiler shell, tubes and fittings.

Key Steps:

• The boiler is filled with water to remove air.
• Pressure is gradually increased while the boiler is observed for leaks.
• Results are recorded to ensure the boiler holds pressure without any pressure loss or distortion.

Steam Test:

This test evaluates the operational safety of the boiler when generating steam. The boiler is fired up, and its safety valves and components like the water gauge and blowdown valve are checked for proper function.

Key Steps:

• The boiler is fired to bring it to operational pressure.
• The safety valve is checked for correct operation.
• The aim is to ensure that the water gauge and pressure gauge are functioning correctly.

Boiler Certification and Documentation

Once both the hydraulic and steam tests are successfully passed, results are documented and a certificate is issued. This certificate must be retained by the owner and is crucial for exhibiting boilers at public events. Regular retesting is mandatory, with hydraulic tests every four years and steam tests annually.

Northern Heritage Engineering: Experts in Superior Quality Boiler Design

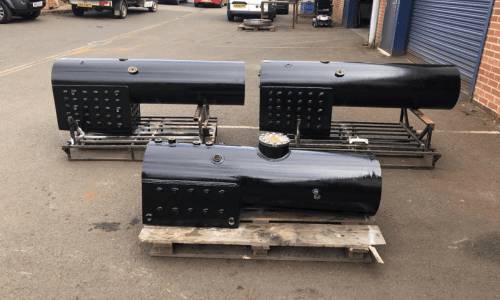

When it comes to ensuring your boiler is of the highest standard, Northern Heritage Engineering is a leader in the design and build of superior quality boilers. Our expertise spans decades, providing bespoke solutions for miniature steam locomotives and traction engines. Our commitment to precision engineering ensures that every boiler we produce meets the highest safety and performance standards, to meet The Boiler Test Code 2018.

If you’re looking for a reliable, expertly crafted boiler for your steam project, Northern Heritage Engineering is the name to trust.

Why Testing Matters

Boilers operate under extreme pressure, and any failure could result in severe injury or damage. The BTC 2018 helps prevent these risks by ensuring boilers are maintained to a high standard. It provides confidence to operators and the public, knowing that rigorous testing has been conducted.

Get in Touch

To ensure your boiler is designed and built to meet the latest safety standards, or for any advice on boiler testing and certification, contact Northern Heritage Engineering. Our team of specialists is ready to assist you in making sure your boiler performs safely and efficiently.
